nanoCAD Free Review: Free Cad Software for DWG Editing and Classic 2D Drafting

There are very few options to choose from when someone sends you a DWG file and expects you to edit it, mark it, and send it back.

Furthermore, CAD software is needed to accomplish this, which definitely does not come cheap, especially for students and beginners. This is where nanoCAD Free follows through with a completely free alternative.

This guide lets you in on how nanoCAD Free works, its features, and product registration model, and a full review of its workflow.

Key Takeaways

• Core features and capabilities of nanoCAD Free
• Who is it made for, and what can you do with it
• How to install and run nanoCAD Free for the first time
• The upgrade to nanoCAD 25 and its paid modules

What nanoCAD Free is (and why it’s still useful)

nanoCAD Free is explicitly described as a legacy version 5 of the nanoCAD platform.  That “legacy” label matters because it explains both its appeal and its constraints: you’re getting a stable, classic CAD environment built around DWG drafting, but you’re not getting modern DWG versions or many of the productivity features that have appeared in newer releases.

The headline advantage is simple: DWG is native. Nanosoft AS highlights that drawings created and saved as .dwg can be opened and edited in other CAD applications that support DWG, without translation being positioned as a requirement.

For users who primarily require the software to just open or make small adjustments to their DWG files without paying a hefty subscription amount, this can be used to their benefit.

Core capabilities: what you get at no cost

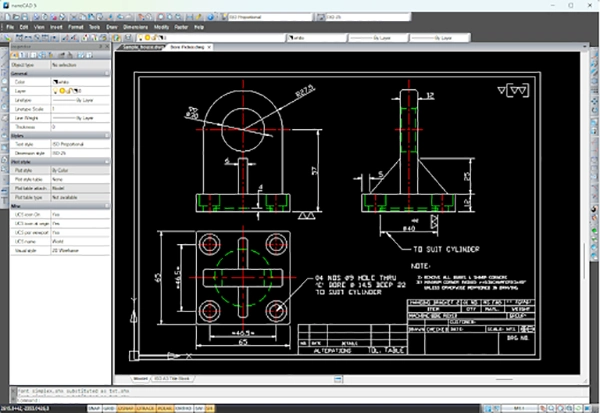

Its free features are all built around the usual CAD workflow that we encounter, consisting of menus, toolbars, and recognizable commands.

Nanosoft positions this as an advantage for “quick move” from AutoCAD‑style environments, claiming that users familiar with similar CAD applications will feel at home quickly.

Here are the practical highlights, based on the vendor’s own feature breakdown:

• A large command set: Nanosoft states you have access to 450+ commands, reachable via menus, toolbars, the command line, or macros/scripts.
• A sufficient 2D drafting toolkit: The product description emphasizes versatile 2D primitive creation/editing and “optimized geometry tools,” aiming to reduce clicks and keep drafting fast.
• Layer-based organisation: Layering is positioned as a core strength for managing visibility and document structure (a must for real drafting, not just sketching).
• Annotation and document handling: nanoCAD Free is presented as having advanced annotation tools such as Multiline Text and Search & Replace for faster edits across a drawing.
• Dimensions and tables: Nanosoft lists multiple dimension types (linear, radial, angular, arc) and table workflows, including import/export of table data for calculation/automation scenarios.
• Reusable content: The platform highlights blocks and external references (DWG references/Xrefs), which are essential for repeated symbols, title blocks, and collaborative drawing sets.
• Drawing “health” utilities: Audit, Recover, and Purge are explicitly mentioned for checking errors, repairing files, and reducing file size—useful when opening drawings created in other CAD systems.
• Coordinate systems: There is specific mention of support for Cartesian and polar coordinates, plus world/user coordinate systems, with per‑viewport customisation.

For beginners and students who require CAD software for their work, this most definitely covers almost all the fundamentals. Clean geometry, organisation of layers, labels, symbols, and files.

And for developers (or technically-minded teams), nanoCAD Free is positioned with an open API. The product page references a traditional CAD API and even notes NRX (C++/.NET) as similar to AutoCAD’s ARX, implying a pathway to port or build automation and add-ons.

If you’re evaluating free cad software specifically to support a DWG‑first 2D workflow (rather than parametric 3D modeling), nanoCAD Free stands out by leaning into classic drafting essentials and a familiar command structure.

What you can do with it: broad, real-world tasks

Because nanoCAD Free is oriented around 2D drafting (plus limited 3D viewing), it maps well to a wide range of “practical drawing” tasks—especially when the deliverable is a clear, dimensioned DWG rather than a fully parametric 3D model.

Typical non‑commercial use cases include:

• Floor plans and home layouts: room outlines, doors/windows, dimensions, furniture blocks, measurement-based plans for renovations or DIY projects.
• Site and garden plans: property boundaries, placement of structures, simple landscaping layouts, drainage notes, and context diagrams.
• Electrical and low-voltage diagrams: wiring routes, panel layouts, symbols (often block-based), and clear labeling.
• Workshop and fabrication drawings: dimensioned parts, simple assemblies (2D views), cut lists represented via tables and annotations.
• DWG markups and revisions: opening a contractor/client DWG, correcting geometry, adjusting text/dimensions, and sending the file back in DWG.

This aligns with how many people actually “enter CAD”: not through advanced simulation or generative design, but through the need to read and edit existing technical drawings efficiently.

Fun Fact

Despite being completely free, nanoCAD Free retains a fully functional OpenAPI, which means users can add in more functionality and customise it further for scripting uses

The Honest limitations (and why they matter)

nanoCAD Free is intentionally limited, and the product page spells out many exclusions. The most important ones to set expectations for an international audience are:

1) Licensing: non-commercial use

Nanosoft states nanoCAD Free is free for non‑commercial use, and the FAQ explicitly says you may not use it for projects intended for commercial distribution or internal use that produce revenue/benefit.

As a result, most businesses can train staff, use it for small or personal non-profit work, but commercial production and drafting point you towards paid nanoCAD alternatives.

2) DWG format ceiling (DWG up to 2013)

This is the biggest operational constraint. Nanosoft states nanoCAD Free supports DWG versions up to 2013 only and cannot open DWG‑2018.

If you frequently receive DWG files created in modern CAD systems, plan for a “save down” workflow or consider moving to nanoCAD 25.

3) Missing modern drafting conveniences and industry connectors

The “What you don’t get” list includes (among others): DWG 2018 read/write, dynamic input at the cursor, advanced layer controls, associative hatching, 3D solids modeling, parametric 2D design, tool palettes, IFC import, PDF underlays, raster editing, and point cloud import/export.

In practice, this means nanoCAD Free is best treated as a solid classic drafter/editor—not a modern AEC/BIM hub and not a 3D mechanical modeler.

4) PDF workflows are not native

Nanosoft is explicit: nanoCAD Free has no built‑in support for converting/exporting to PDF, and positions PDF export as a capability introduced in newer platform versions (nanoCAD 24 and later).

(You can still often “print” to a PDF via a system PDF printer, but that’s different from native export features and PDF underlays.)

5) OS age and compatibility risks on modern Windows

The official system requirements list Windows 8/7/Vista and very modest hardware baselines, reinforcing that this is an older generation tool.
Nanosoft also notes that nanoCAD Free v.5 was released before Windows 10 (in 2013), and they can’t guarantee compatibility with Windows 10/11.

6) Deployment limits: no network licensing + language

Nanosoft has stated that network licensing is not for nanoCAD Free; each license is valid for only one computer.
And nanoCAD Free (v.5) is stated as available only in English.

Getting started: what the first run looks like

The process is straightforward: firstly, register on the official nanoCAD website, log in with your personal account, and this will generate a serial number for nanoCAD 5 Free, which will be used to download the installer, and then, after you can enter the serial number for verification.

Nanosoft also points new users to a local user guide (installed with the program) and additional learning resources through its Learning Center and YouTube channel.  In other words, you can treat it like most classic CAD tools: install, learn the basics of layers/blocks/dimensions, and start editing DWGs immediately.

The upgrade path: nanoCAD 25 and paid modules (briefly)

If nanoCAD Free is the entry point, nanoCAD 25 Platform is positioned as the modern, professional-grade counterpart: DWG-standard compatibility with a broader 2D/3D drafting toolset, extensible via modules.

Nanosoft offers a 30-day trial for nanoCAD 25 so users can evaluate the current platform.

Paid modules are designed to expand capability in targeted directions:

• 3D Solid Modeling: direct editing and parametric modeling, 3D constraints for assemblies, plus sheet metal tools.
• Mechanica: 2D/3D mechanical design, standard parts libraries, and built-in calculators for faster mechanical drafting.
• Construction: AEC-oriented drafting utilities, including IFC support and parametric libraries intended to automate construction drawings.
• Raster: tools for importing, correcting, and vectorizing raster images (useful for scanned drawings).
• Topoplan: digital terrain modeling workflows (TINs, reliefs, volume/area calculations).
• nanoCAD 3DScan: point-cloud oriented scanning and data processing, positioned for engineering/construction/geodesy workflows — planned to become standalone software in 2026

For budget planning, the vendor’s buy page positions nanoCAD pricing “starting at” $289/year (with modules and bundles above that).  And for the student segment specifically, Nanosoft promotes free education licences for the latest nanoCAD platform for teachers and students.

Bottom line

nanoCAD Free is best understood as a classic, DWG-native 2D drafting and editing environment offered at no cost, with free registration and free yearly renewal—ideal for students, learners, hobbyists, and small teams who mainly need to open and edit DWG files for non-commercial projects.

Its value is strongest when your needs are straightforward: edit geometry, manage layers, place blocks, annotate and dimension, keep drawings healthy, and exchange DWGs.

But if your workflow requires more advanced versions of DWG, handling of PDFs, raster/point clouds, or more serious 3d solids, then nanoCAD 25 ( plus relevant modules) is the best and most logical step for you, with a 30-day free trial, making your decision even clearer.
